5XD - SOĞUTMASIZ

  1. ANA SAYFA
  2. 5XD - SOĞUTMASIZ
Isı Dayanıklı Malzemeler
Alasımsız Çelikler
Düsük Alasımlı Çelikler
Isleme Çelikleri
Döküm
Alaşımlı Alüminyum
Sert Plastik Malzemeler
Otomat Malzemeler

5XD - SOĞUTMASIZ

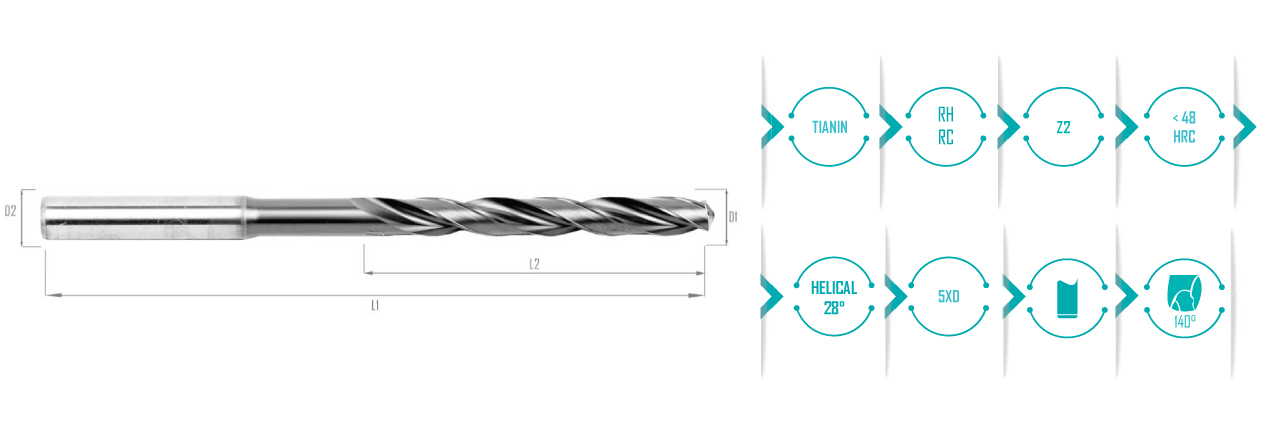

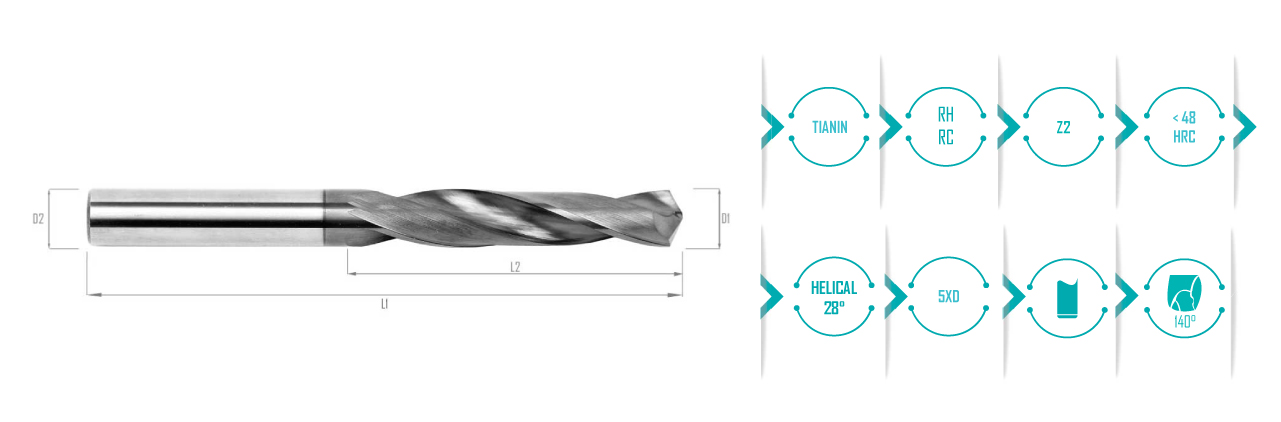

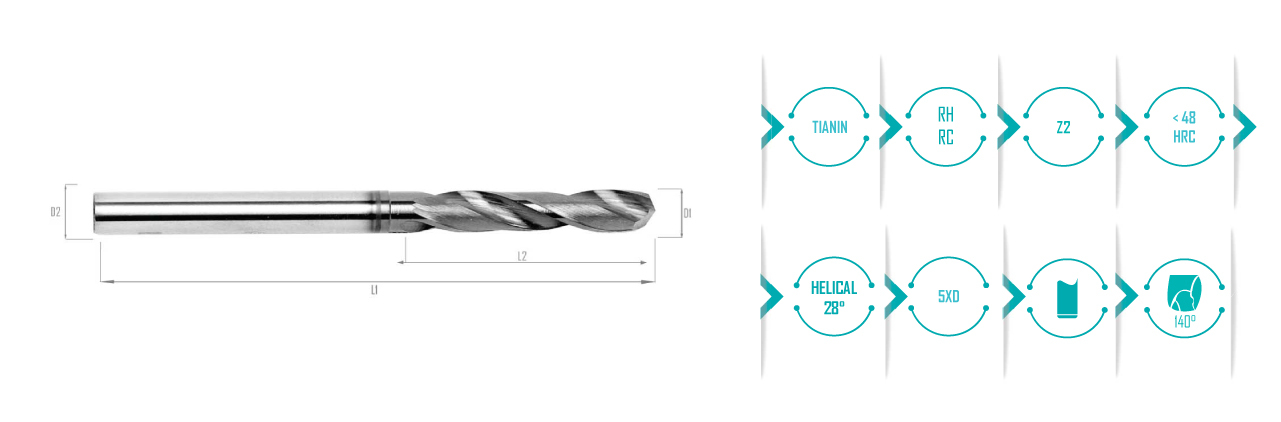

STOK KODU D1 D2 L1 L2 L3
ADR-9020306-5XD 3,0 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.106-5XD 3,1 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.206-5XD 3,2 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.306-5XD 3,3 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.406-5XD 3,4 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.506-5XD 3,5 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.606-5XD 3,6 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.706-5XD 3,7 MM 6,0 MM 66 MM 28 MM 23 MM
ADR-9023.806-5XD 3,8 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9023.906-5XD 3,9 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9020406-5XD 4,0 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.106-5XD 4,1 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.206-5XD 4,2 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.306-5XD 4,3 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.406-5XD 4,4 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.506-5XD 4,5 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.606-5XD 4,6 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.706-5XD 4,7 MM 6,0 MM 74 MM 36 MM 29 MM
ADR-9024.806-5XD 4,8 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9024.906-5XD 4,9 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9020506-5XD 5,0 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.106-5XD 5,1 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.206-5XD 5,2 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.306-5XD 5,3 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.406-5XD 5,4 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.506-5XD 5,5 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.606-5XD 5,6 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.706-5XD 5,7 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.806-5XD 5,8 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9025.906-5XD 5,9 MM 6,0 MM 82 MM 44 MM 35 MM
ADR-9020606-5XD 6,0 MM 6,0 MM 82 MM 44 MM 35 MM



STOK KODU D1 D2 L1 L2 L3
ADR-9026.108-5XD 6,1 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.208-5XD 6,2 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.308-5XD 6,3 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.408-5XD 6,4 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.508-5XD 6,5 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.608-5XD 6,6 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.708-5XD 6,7 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.808-5XD 6,8 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9026.908-5XD 6,9 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9020708-5XD 7,0 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.108-5XD 7,1 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.208-5XD 7,2 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.308-5XD 7,3 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.408-5XD 7,4 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.508-5XD 7,5 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.608-5XD 7,6 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.708-5XD 7,7 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.808-5XD 7,8 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9027.908-5XD 7,9 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9020808-5XD 8,0 MM 8,0 MM 91 MM 53 MM 43 MM
ADR-9028.110-5XD 8,1 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.210-5XD 8,2 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.310-5XD 8,3 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.410-5XD 8,4 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.510-5XD 8,5 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.610-5XD 8,6 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.710-5XD 8,7 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.810-5XD 8,8 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9028.910-5XD 8,9 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9020910-5XD 9,0 MM 10,0 MM 103 MM 61 MM 49 MM



STOK KODU D1 D2 L1 L2 L3
ADR-9029.110-5XD 9,1 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.210-5XD 9,2 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.310-5XD 9,3 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.410-5XD 9,4 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.510-5XD 9,5 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.610-5XD 9,6 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.710-5XD 9,7 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.810-5XD 9,8 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9029.810-5XD 9,9 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-9021010-5XD 10,0 MM 10,0 MM 103 MM 61 MM 49 MM
ADR-90210.212-5XD 10,2 MM 12,0 MM 118 MM 71 MM 56 MM
ADR-90210.512-5XD 10,5 MM 12,0 MM 118 MM 71 MM 56 MM
ADR-90210.812-5XD 10,8 MM 12,0 MM 118 MM 71 MM 56 MM
ADR-9021112-5XD 11,0 MM 12,0 MM 118 MM 71 MM 56 MM
ADR-90211.512-5XD 11,5 MM 12,0 MM 118 MM 71 MM 56 MM
ADR-90211.812-5XD 11,8 MM 12,0 MM 118 MM 71 MM 56 MM
ADR-9021212-5XD 12,0 MM 12,0 MM 118 MM 71 MM 56 MM
ADR-90212.514-5XD 12,5 MM 14,0 MM 124 MM 77 MM 60 MM
ADR-90212.814-5XD 12,8 MM 14,0 MM 124 MM 77 MM 60 MM
ADR-9021314-5XD 13,0 MM 14,0 MM 124 MM 77 MM 60 MM
ADR-90213.514-5XD 13,5 MM 14,0 MM 124 MM 77 MM 60 MM
ADR-90213.814-5XD 13,8 MM 14,0 MM 124 MM 77 MM 60 MM
ADR-9021414-5XD 14,0 MM 14,0 MM 124 MM 77 MM 60 MM
ADR-90214.516-5XD 14,5 MM 16,0 MM 133 MM 83 MM 63 MM
ADR-90214.816-5XD 14,8 MM 16,0 MM 133 MM 83 MM 63 MM
ADR-9021516-5XD 15,0 MM 16,0 MM 133 MM 83 MM 63 MM
ADR-90215.516-5XD 15,5 MM 16,0 MM 133 MM 83 MM 63 MM
ADR-90215.816-5XD 15,8 MM 16,0 MM 133 MM 83 MM 63 MM
ADR-9021616-5XD 16,0 MM 16,0 MM 133 MM 83 MM 63 MM



STOK KODU D1 D2 L1 L2 L3
ADR-90216.518-5XD 16,5 MM 18,0 MM 143 MM 93 MM 71 MM
ADR-90216.818-5XD 16,8 MM 18,0 MM 143 MM 93 MM 71 MM
ADR-9021718-5XD 17,0 MM 18,0 MM 143 MM 93 MM 71 MM
ADR-90217.518-5XD 17,5 MM 18,0 MM 143 MM 93 MM 71 MM
ADR-90217.818-5XD 17,8 MM 18,0 MM 143 MM 93 MM 71 MM
ADR-9021818-5XD 18,0 MM 18,0 MM 143 MM 93 MM 71 MM
ADR-90218.520-5XD 18,5 MM 20,0 MM 153 MM 101 MM 77 MM
ADR-90218.820-5XD 18,8 MM 20,0 MM 153 MM 101 MM 77 MM
ADR-9021920-5XD 19,0 MM 20,0 MM 153 MM 101 MM 77 MM
ADR-90219.520-5XD 19,5 MM 20,0 MM 153 MM 101 MM 77 MM
ADR-90219.820-5XD 19,8 MM 20,0 MM 153 MM 101 MM 77 MM
ADR-9022020-5XD 20,0 MM 20,0 MM 153 MM 101 MM 77 MM
