Isı Dayanıklı Malzemeler
Alasımsız Çelikler
Düsük Alasımlı Çelikler
Isleme Çelikleri
Döküm
Alaşımlı Alüminyum
Sert Plastik Malzemeler
Otomat Malzemeler

3XD - SOĞUTMASIZ

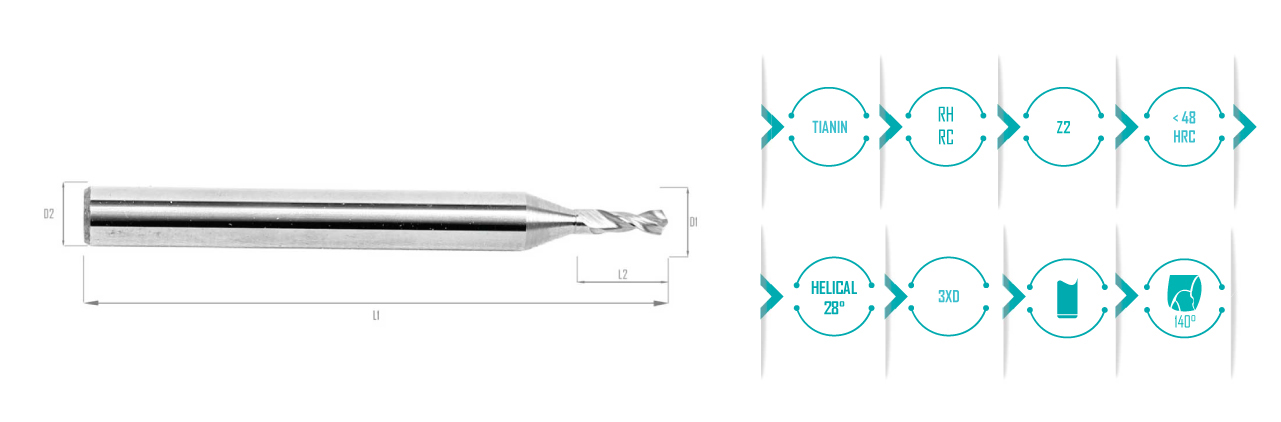

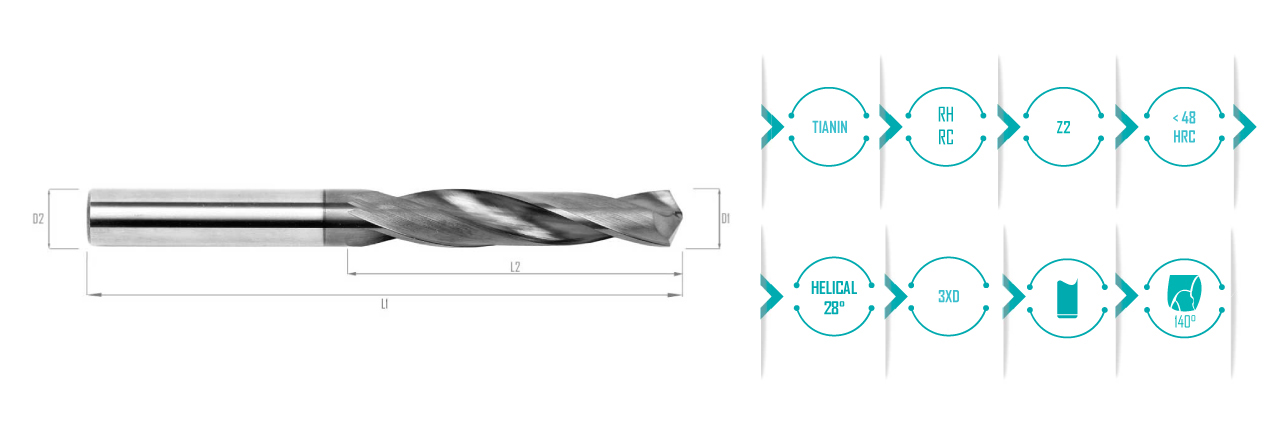

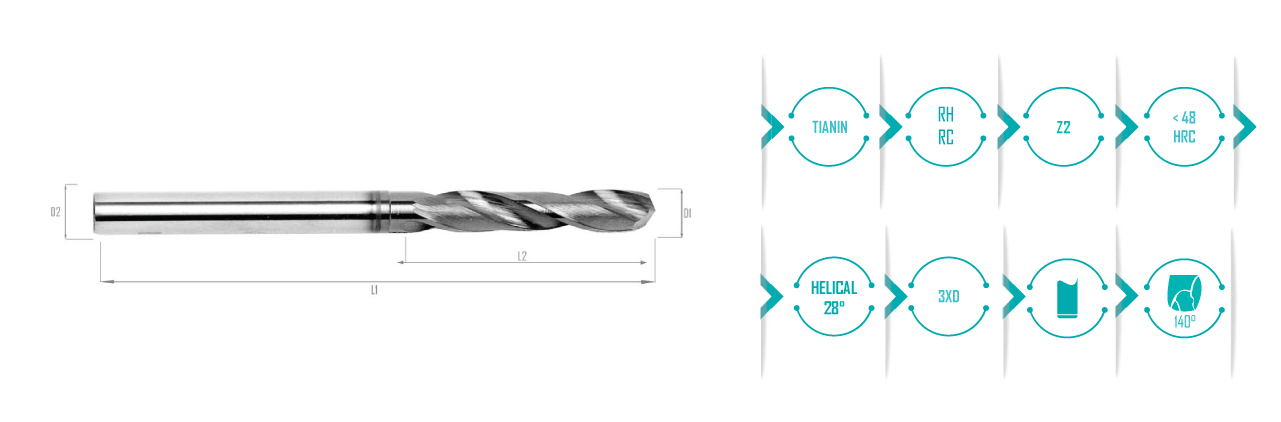

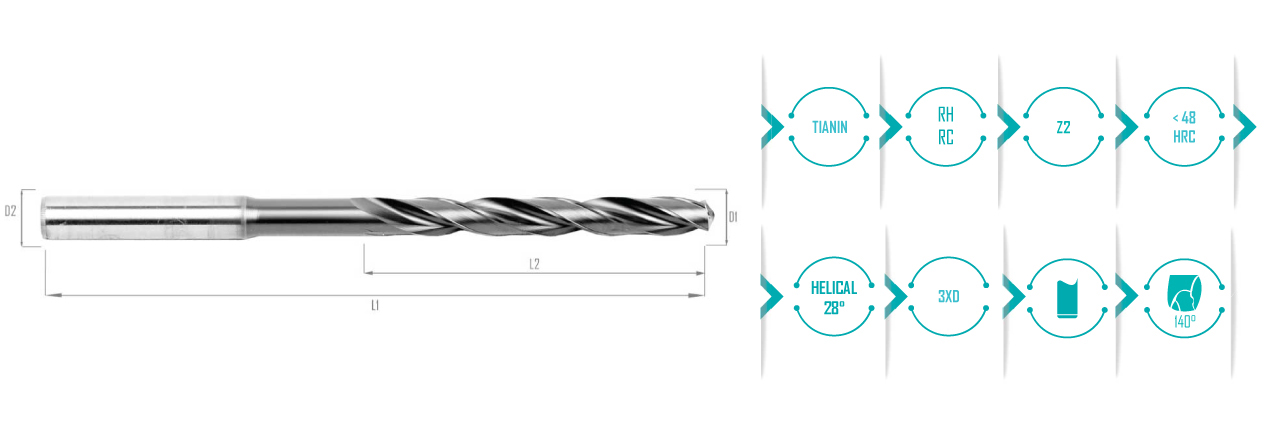

STOK KODU D1 D2 L1 L2 L3
ADR-9020303-3XD 3,0 MM 3,0 MM 50 MM 16 MM 12 MM
ADR-9023.104-3XD 3,1 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.204-3XD 3,2 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.304-3XD 3,3 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.404-3XD 3,4 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.504-3XD 3,5 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.604-3XD 3,6 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.704-3XD 3,7 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.804-3XD 3,8 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9023.904-3XD 3,9 MM 4,0 MM 50 MM 16 MM 12 MM
ADR-9020404-3XD 4,0 MM 4,0 MM 50 MM 24 MM 20 MM
ADR-9024.105-3XD 4,1 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.205-3XD 4,2 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.305-3XD 4,3 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.405-3XD 4,4 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.505-3XD 4,5 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.605-3XD 4,6 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.705-3XD 4,7 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.805-3XD 4,8 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9024.905-3XD 4,9 MM 5,0 MM 62 MM 24 MM 20 MM
ADR-9020505-3XD 5,0 MM 5,0 MM 66 MM 30 MM 26 MM



STOK KODU D1 D2 L1 L2 L3
ADR-9020306-3XD 3,0 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.106-3XD 3,1 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.206-3XD 3,2 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.306-3XD 3,3 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.406-3XD 3,4 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.506-3XD 3,5 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.606-3XD 3,6 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.706-3XD 3,7 MM 6,0 MM 62 MM 20 MM 14 MM
ADR-9023.806-3XD 3,8 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9023.906-3XD 3,9 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9020406-3XD 4,0 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.106-3XD 4,1 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.206-3XD 4,2 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.306-3XD 4,3 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.406-3XD 4,4 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.506-3XD 4,5 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.606-3XD 4,6 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.706-3XD 4,7 MM 6,0 MM 66 MM 24 MM 17 MM
ADR-9024.806-3XD 4,8 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9024.906-3XD 4,9 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9020506-3XD 5,0 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.106-3XD 5,1 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.206-3XD 5,2 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.306-3XD 5,3 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.406-3XD 5,4 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.506-3XD 5,5 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.606-3XD 5,6 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.706-3XD 5,7 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.806-3XD 5,8 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9025.906-3XD 5,9 MM 6,0 MM 66 MM 28 MM 20 MM
ADR-9020606-3XD 6,0 MM 6,0 MM 66 MM 28 MM 20 MM



STOK KODU D1 D2 L1 L2 L3
ADR-9026.108-3XD 6,1 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.208-3XD 6,2 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.308-3XD 6,3 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.408-3XD 6,4 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.508-3XD 6,5 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.608-3XD 6,6 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.708-3XD 6,7 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.808-3XD 6,8 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9026.908-3XD 6,9 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9020708-3XD 7,0 MM 8,0 MM 79 MM 34 MM 24 MM
ADR-9027.108-3XD 7,1 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.208-3XD 7,2 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.308-3XD 7,3 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.408-3XD 7,4 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.508-3XD 7,5 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.608-3XD 7,6 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.708-3XD 7,7 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.808-3XD 7,8 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9027.908-3XD 7,9 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9020808-3XD 8,0 MM 8,0 MM 79 MM 41 MM 29 MM
ADR-9028.110-3XD 8,1 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.210-3XD 8,2 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.310-3XD 8,3 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.410-3XD 8,4 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.510-3XD 8,5 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.610-3XD 8,6 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.710-3XD 8,7 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.810-3XD 8,8 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9028.910-3XD 8,9 MM 10,0 MM 89 MM 47 MM 35 MM



STOK KODU D1 D2 L1 L2 L3
ADR-9020910-3XD 9,0 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.110-3XD 9,1 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.210-3XD 9,2 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.310-3XD 9,3 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.410-3XD 9,4 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.510-3XD 9,5 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.610-3XD 9,6 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.710-3XD 9,7 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.810-3XD 9,8 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9029.810-3XD 9,9 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-9021010-3XD 10,0 MM 10,0 MM 89 MM 47 MM 35 MM
ADR-90210.212-3XD 10,2 MM 12,0 MM 102 MM 55 MM 40 MM
ADR-90210.512-3XD 10,5 MM 12,0 MM 102 MM 55 MM 40 MM
ADR-90210.812-3XD 10,8 MM 12,0 MM 102 MM 55 MM 40 MM
ADR-9021112-3XD 11,0 MM 12,0 MM 102 MM 55 MM 40 MM
ADR-90211.512-3XD 11,5 MM 12,0 MM 102 MM 55 MM 40 MM
ADR-90211.812-3XD 11,8 MM 12,0 MM 102 MM 55 MM 40 MM
ADR-9021212-3XD 12,0 MM 12,0 MM 102 MM 55 MM 40 MM
ADR-9021212-3XD 12,5 MM 14,0 MM 107 MM 60 MM 43 MM
ADR-90212.814-3XD 12,8 MM 14,0 MM 107 MM 60 MM 43 MM
ADR-9021314-3XD 13,0 MM 14,0 MM 107 MM 60 MM 43 MM
ADR-90213.514-3XD 13,5 MM 14,0 MM 107 MM 60 MM 43 MM
ADR-90213.814-3XD 13,8 MM 14,0 MM 107 MM 60 MM 43 MM
ADR-9021414-3XD 14,0 MM 14,0 MM 107 MM 60 MM 43 MM
ADR-90214.516-3XD 14,5 MM 16,0 MM 115 MM 65 MM 45 MM
ADR-90214.816-3XD 14,8 MM 16,0 MM 115 MM 65 MM 45 MM
ADR-9021516-3XD 15,0 MM 16,0 MM 115 MM 65 MM 45 MM
ADR-90215.516-3XD 15,5 MM 16,0 MM 115 MM 65 MM 45 MM
ADR-90215.816-3XD 15,8 MM 16,0 MM 115 MM 65 MM 45 MM



STOK KODU D1 D2 L1 L2 L3
ADR-9021616-3XD 16,0 MM 16,0 MM 115 MM 65 MM 45 MM
ADR-90216.518-3XD 16,5 MM 18,0 MM 123 MM 73 MM 51 MM
ADR-90216.818-3XD 16,8 MM 18,0 MM 123 MM 73 MM 51 MM
ADR-9021718-3XD 17,0 MM 18,0 MM 123 MM 73 MM 51 MM
ADR-90217.518-3XD 17,5 MM 18,0 MM 123 MM 73 MM 51 MM
ADR-90217.818-3XD 17,8 MM 18,0 MM 123 MM 73 MM 51 MM
ADR-9021818-3XD 18,0 MM 18,0 MM 123 MM 73 MM 51 MM
ADR-9021818-3XD 18,5 MM 20,0 MM 131 MM 79 MM 55 MM
ADR-90218.820-3XD 18,8 MM 20,0 MM 131 MM 79 MM 55 MM
ADR-9021920-3XD 18,8 MM 20,0 MM 131 MM 79 MM 55 MM
ADR-90219.520-3XD 19,5 MM 20,0 MM 131 MM 79 MM 55 MM
ADR-90219.820-3XD 19,8 MM 20,0 MM 131 MM 79 MM 55 MM
ADR-9022020-3XD 20,0 MM 20,0 MM 131 MM 79 MM 55 MM
